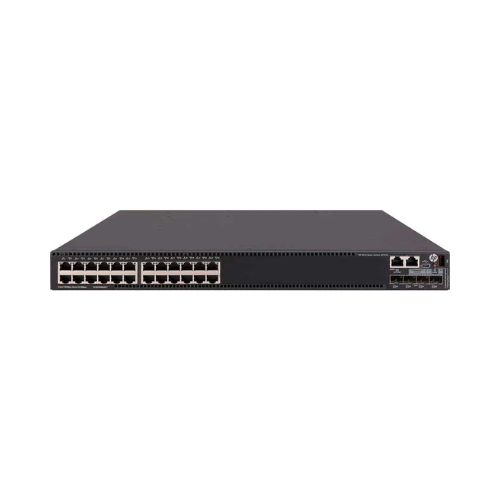

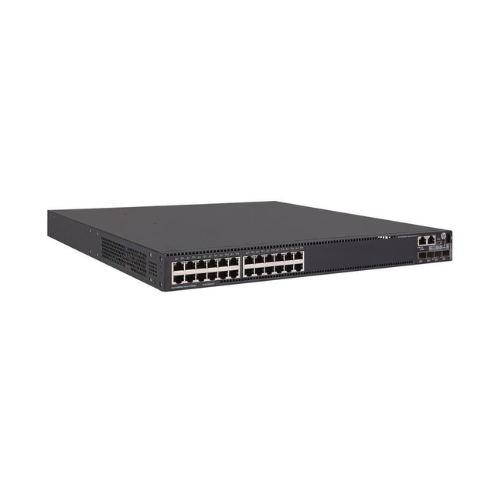

Certified Refurbished HPE FlexNetwork 5510 24G 4SFP+ HI 1-Slot Switch (JH145A) - Enterprise-Grade Layer 3 Network Solution

The HPE FlexNetwork 5510 24G 4SFP+ HI 1-slot Switch (JH145A) delivers enterprise-class networking performance with 24 Gigabit Ethernet ports, 4 SFP+ 10GbE uplinks, 288 Gb/s switching capacity, 214 Mpps throughput, and weighs 7.5 kg with dimensions of 44.00 x 36.00 x 4.37 cm. This certified refurbished Layer 3 switch provides outstanding resiliency, security, and multiservice support for medium to large enterprise networks, data centres, campus deployments, and SMB core networking environments.

Ideal Network Applications

This versatile managed switch excels in demanding enterprise environments where reliability and performance are critical. Deploy it as an edge layer solution in data centres requiring high-density Gigabit connectivity with 10GbE uplinks, or utilise it as the core networking backbone for small to medium business infrastructures. The switch's Intelligent Resilient Fabric (IRF) capability with 9-chassis stacking and up to 160 Gbps stacking bandwidth makes it perfect for organisations planning network growth and requiring simplified management across multiple units. It's particularly well-suited for businesses transitioning from IPv4 to IPv6 networks, thanks to complete protocol support and MPLS/VPLS features.

Key Features and Benefits

Enterprise-Class Performance
This refurbished switch delivers exceptional throughput with 288 Gb/s switching capacity and 214 Mpps packet forwarding, ensuring your network handles bandwidth-intensive applications without bottlenecks. The ultra-low latency of less than 5 μs for Gigabit connections and less than 3 μs for 10 Gbps ensures responsive network performance.

Flexible Connectivity Options
Connect up to 24 devices via autosensing 10/100/1000 RJ-45 ports with Auto-MDIX support, plus leverage 4 built-in SFP+ 10GbE ports for high-speed uplinks. The expansion module slot accommodates up to 6 additional SFP+ ports, 2 1/10GBASE-T ports, or 2 40GbE ports for future scalability.

Enhanced Security with MACSec
Ports 1-8 feature hardware-based MACSec encryption, providing enterprise-grade security for sensitive data transmission at the hardware level without compromising performance.

Comprehensive Management
Multiple management interfaces include a dual-personality console port (RJ-45 or USB micro-B), dedicated out-of-band management port, and USB 2.0 port for flexible configuration and monitoring options.

Protocol and Standards Compliance
Full IPv4/IPv6 support, OpenFlow capabilities, and MPLS/VPLS features ensure seamless integration into modern enterprise networks and protect your investment during network transitions.

Redundant and Reliable Architecture
Dual fan trays and support for dual redundant power supplies ensure maximum uptime and reliability for mission-critical network operations.

Essential Technical Specifications

• Ports: 24 x RJ-45 autosensing 10/100/1000 Gigabit Ethernet + 4 x SFP+ 10GbE + 1 expansion slot
• Switching Capacity: 288 Gb/s with 214 Mpps throughput
• MAC Address Table: 32,768 entries
• Routing Table: 32,768 IPv4 entries / 16,384 IPv6 entries
• Latency: <5 μs (1000 Mb) / <3 μs (10 Gbps)
• Power Consumption: Maximum 107 W / Idle 55 W
• Voltage: 100-240 VAC (50/60 Hz) or -48 to -60 VDC
• Dimensions: 44.00 x 36.00 x 4.37 cm (17.32 x 14.17 x 1.72 in)
• Weight: 7.5 kg (16.53 lb)
• Model Number: JH145A

Certified Refurbishment and Quality Assurance

At Reboot IT, every HPE FlexNetwork 5510 switch undergoes our rigorous refurbishment and certification process, backed by over two decades of industry expertise since 2001. Using cutting-edge testing software and advanced diagnostic tools, our qualified technicians thoroughly test all features and functions to ensure each unit meets enterprise performance standards. All data is securely wiped, and the switch is restored to factory defaults. Every port, uplink, and management interface is verified through comprehensive functional testing. The unit is professionally cleaned, inspected for any physical defects, and graded according to our strict quality standards. All certified refurbished switches are verified through Reboot IT's thorough testing process before being approved for resale.

Understanding Cosmetic Grades:
While this device is available in Excellent and Good grades, both grades deliver identical performance and functionality. Excellent grade units show minimal signs of previous use with only light cosmetic wear, whilst Good grade units may display moderate cosmetic imperfections such as minor scratches or scuffs on the chassis. All units, regardless of cosmetic grade, undergo the same rigorous functional testing and perform to the same enterprise standards.

Warranty and Support

This certified refurbished HPE FlexNetwork 5510 switch is sold by Reboot IT with a comprehensive 1-year warranty covering all hardware defects and workmanship issues during normal operation. Our warranty demonstrates our confidence in the quality and reliability of our refurbishment process. Should any technical issues arise, our experienced support team is ready to assist with repair or replacement to keep your network running smoothly.

Ready to Upgrade Your Network Infrastructure?

Experience enterprise-grade networking performance without the enterprise price tag. This certified refurbished HPE FlexNetwork 5510 24G 4SFP+ HI Switch delivers the reliability, security, and scalability your business needs whilst supporting sustainable technology reuse. Add to cart today and benefit from Reboot IT's trusted quality, comprehensive warranty coverage, and expert support for your mission-critical network infrastructure.
