Dell PowerConnect 7024 24-Port Gigabit Managed Switch | Wty

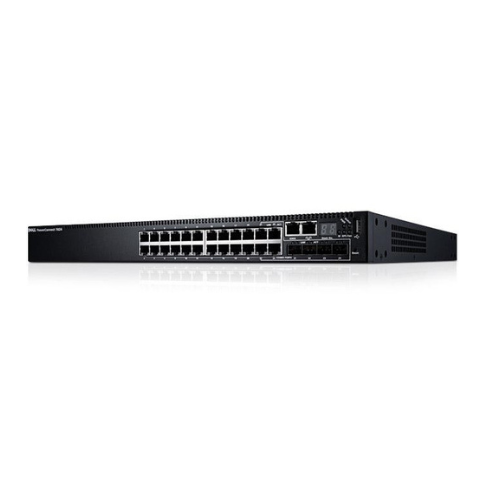

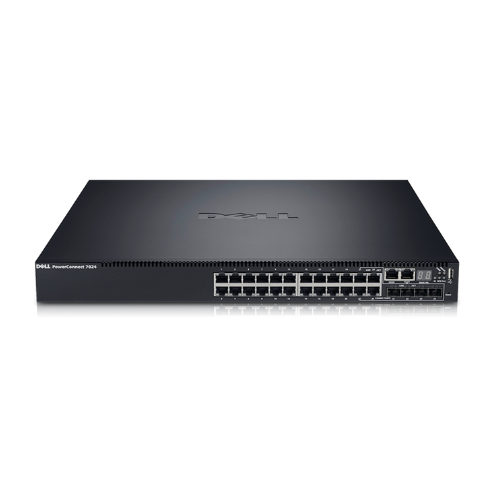

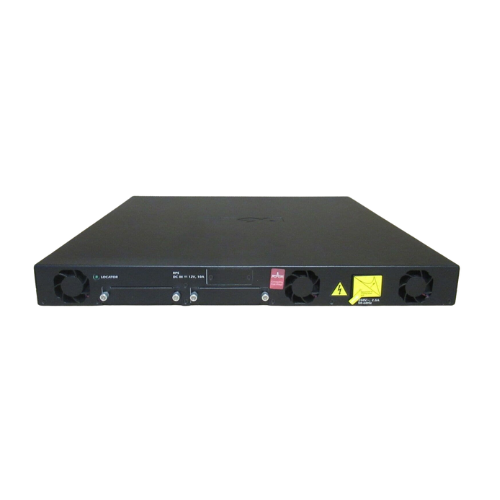

Dell PowerConnect 7024 Certified Refurbished Enterprise Switch

The certified refurbished Dell PowerConnect 7024 is a Layer 3 managed Gigabit Ethernet switch featuring 24 auto-sensing 10/100/1000BASE-T ports, 4 combo SFP/Gigabit ports, 176 Gbps switch fabric capacity, 125 Mpps forwarding rate, and stackable architecture supporting up to 12 units with dedicated 64 Gbps stacking bandwidth. This enterprise-grade networking solution delivers wire-speed Layer 3 switching capabilities, advanced security features, and energy-efficient operation in a compact 1U rack-mountable design, making it ideal for growing businesses requiring reliable, high-performance network infrastructure.

Ideal Use Cases

This professional-grade switch excels in medium to large enterprise environments, including data centres requiring high-density network aggregation, corporate wiring closets managing multiple departments, educational institutions with demanding network traffic, and businesses deploying VoIP systems with QoS requirements. The stackable design makes it perfect for organisations planning network expansion whilst maintaining centralised management, whilst the iSCSI optimisation capabilities ensure optimal performance for storage area networks and virtualised server environments.

Key Features and Benefits

Enterprise-Grade Performance: Wire-speed Layer 3 switching across all 24 Gigabit Ethernet ports ensures maximum throughput for mission-critical applications, eliminating bottlenecks during peak usage periods.

Flexible Connectivity Options: Four combo ports accept either SFP fibre modules or standard Gigabit Ethernet connections, providing deployment flexibility for both copper and fibre infrastructure requirements.

Scalable Stacking Architecture: Manage up to 600 ports from a single IP address by stacking up to 12 switches with dedicated 64 Gbps stacking bandwidth, simplifying network administration and reducing management overhead.

Optional 10GbE Uplinks: Support for dual-port 10 Gigabit Ethernet uplink modules with SFP+ or 10GBASE-T interfaces ensures high-bandwidth connectivity to core network infrastructure.

Advanced Security Features: Comprehensive protection through 802.1x port-based authentication, DHCP snooping, Dynamic ARP Inspection, IP and MAC-based Access Control Lists, SSH/SSL encryption, and RADIUS/TACACS+ authentication.

Energy-Efficient Design: IEEE 802.3az Energy Efficient Ethernet architecture automatically reduces power to idle ports or ports in sleep mode, whilst the 80 PLUS-certified power supply minimises operational costs.

Simplified Management: Multiple management interfaces including CLI, embedded web server, SNMP, and USB auto-configuration enable rapid deployment without complex TFTP setups, perfect for remote site installations.

High Availability Features: Redundant power supply support, non-stop forwarding, fast failover in stack configurations, and VRRP protocol support ensure maximum network uptime.

VoIP and QoS Optimisation: Voice VLAN functionality prioritises VoIP traffic, whilst LLDP-MED provides detailed network topology and emergency call service information for IP telephony deployments.

iSCSI Storage Integration: Automatic detection and configuration of EqualLogic storage arrays optimises performance for storage area networks and virtualised environments.

Technical Specifications

• Port Configuration: 24 x 10/100/1000BASE-T auto-sensing Gigabit Ethernet ports, 4 x combo SFP/Gigabit Ethernet ports
• Switch Fabric Capacity: 176 Gbps
• Forwarding Rate: 125 Mpps (million packets per second)
• MAC Address Table: 32,000 entries
• Routing Capacity: Up to 12,288 IPv4/IPv6 routes
• VLAN Support: Up to 1,000 user-configurable VLANs (IEEE 802.1Q)
• Physical Dimensions: 44 cm (W) x 46 cm (D) x 4.4 cm (H)
• Weight: 6.35 kg
• Form Factor: 1U rack-mountable with mounting kit included
• Power Supply: 100-240 VAC, 50/60 Hz, 80 PLUS-certified (maximum consumption 88W)

Quality Assurance and Testing

Every certified refurbished Dell PowerConnect 7024 switch sold by Reboot IT undergoes our rigorous verification process using cutting-edge testing software. We have been industry experts since 2001, bringing over two decades of experience to every refurbished unit. Our thorough testing process verifies all features and functions, including port connectivity, Layer 3 routing capabilities, VLAN configuration, stacking functionality, management interfaces, security features, and power efficiency. Each switch is certified refurbished to meet strict performance standards, ensuring reliable operation comparable to new equipment.

Warranty and Support

This certified refurbished Dell PowerConnect 7024 includes a comprehensive 1-year warranty from Reboot IT, covering defects in materials and workmanship. Our warranty provides peace of mind that your investment is protected, backed by our decades of expertise in enterprise networking equipment. Should any issues arise, our technical support team is ready to assist with prompt service and resolution.

Why Choose Certified Refurbished

Choosing a certified refurbished Dell PowerConnect 7024 from Reboot IT delivers exceptional value without compromising on performance or reliability. Every unit is thoroughly tested and verified to ensure it meets the same exacting standards as new equipment. By selecting refurbished enterprise networking gear, businesses can deploy enterprise-class infrastructure at a fraction of the cost whilst contributing to environmental sustainability through reduced electronic waste. Our comprehensive testing process and generous warranty ensure you receive equipment that performs flawlessly from day one.

Upgrade your network infrastructure today with this certified refurbished Dell PowerConnect 7024 switch and experience enterprise-grade performance, reliability, and scalability backed by Reboot IT's industry-leading expertise and warranty coverage.
