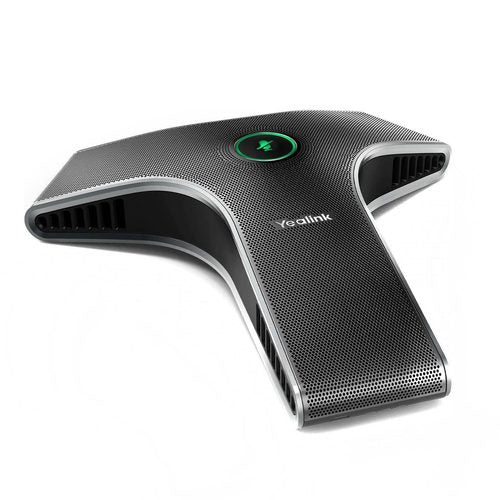

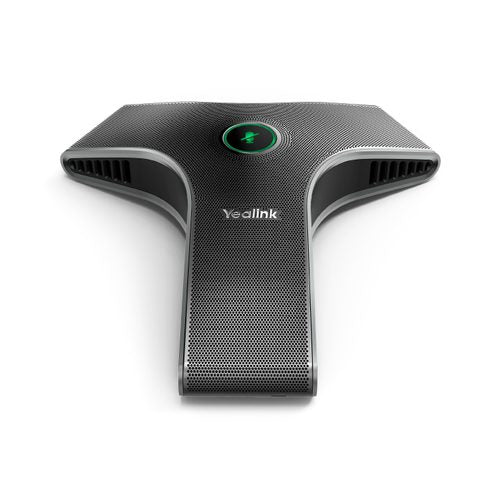

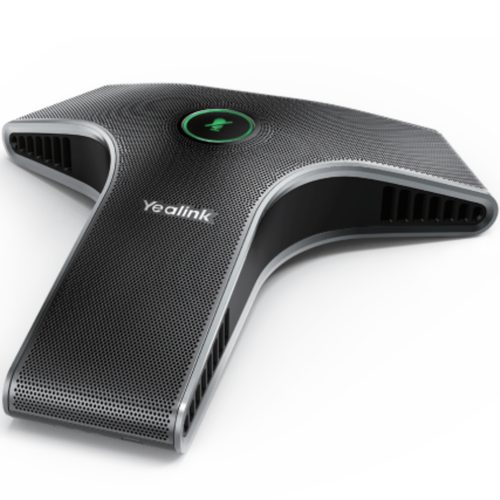

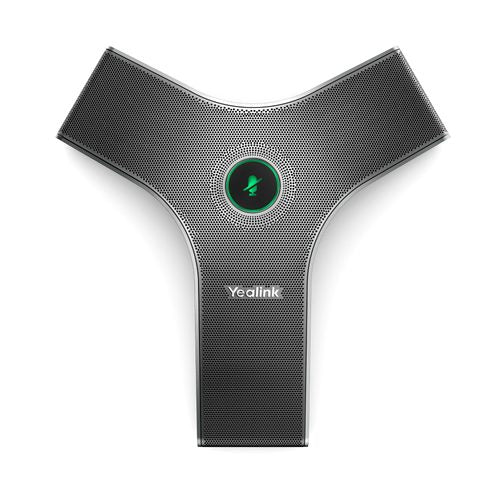

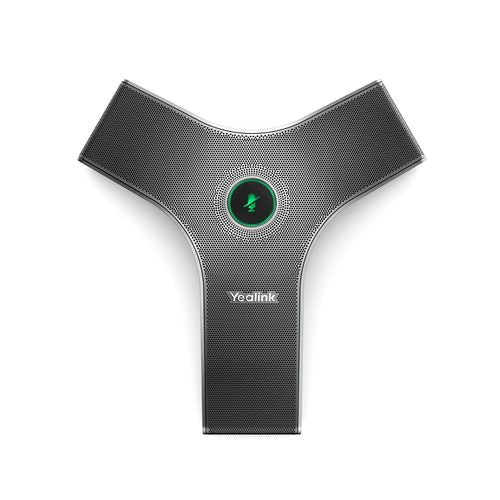

Yealink VCM34 Video Conferencing Microphone Array
The Yealink VCM34 adds a 3-microphone, 360 degree array with 6 metre voice pickup to Yealink video conferencing systems and UVC PTZ cameras. It runs on PoE over one network cable and cascades up to four units, backed by a 12-month Reboot IT warranty.
Key Benefits
-
3-microphone array: Built-in array captures voices evenly from all around the table
-
360 degrees, up to 6 metres: 20ft pickup radius covers a medium meeting table from a single unit
-
Yealink Noise Proof Technology: Background noise suppression, echo cancellation, voice activity detection and comfort noise
-
Power over Ethernet: IEEE 802.3af PoE through one RJ-45 cable carries both audio data and power
-
Cascadable: A dedicated cascade port links up to 4 VCM34 units in one system for long tables
-
Touch mute: Mute the room directly from the touchpad on top of the array
Performance in Use
The VCM34 is an extension microphone for Yealink rooms. It connects by network cable to the Yealink microphone port on a Yealink video conferencing system or a Yealink UVC camera such as the UVC84 or UVC40, which provides its power and carries the audio. Place it in the middle of the table and it becomes the room pickup, with the mute touchpad within reach of the participants.
Three microphones and Yealink audio processing give 360 degree coverage out to about 6 metres, with echo cancellation and noise suppression that filter out keyboard clatter, air-conditioning and projector fans. Full-duplex operation means both ends can talk at once without clipping.
For boardrooms longer than a single unit can cover, a second VCM34 plugs into the cascade port of the first, and up to four can be chained so every seat is close to a microphone. It is not a USB microphone: it needs a compatible Yealink host device.
Technical Specifications
| Specification |
Detail |
| Brand / Model |
Yealink VCM34 |
| Type |
Video conferencing microphone array |
| Microphones |
Built-in 3-microphone array |
| Pickup |
360 degrees, up to 6m (20ft) |
| Audio Processing |
Optima HD voice, AEC, background noise suppression, VAD, CNG, Yealink Noise Proof Technology |
| Controls |
Mute touchpad |
| Ports |
1x RJ-45 (Ethernet and power), 1x RJ-45 (cascade) |
| Power |
PoE IEEE 802.3af (PSE 54V/0.56A or PoE 48V/0.27A) |
| Cascade |
Up to 4 units in one system |
| Compatibility |
Yealink video conferencing systems and Yealink UVC cameras with a Yealink microphone port |
| Dimensions |
169 x 171.5 x 37.5 mm (W x D x H) |
| Operating Temperature |
0 to 40 degrees C |
| Colour |
Black |
| Warranty |
12 months (Reboot IT) |
Is It Right for You?
| Best For ✓ |
Not For ✗ |
| Extending audio on Yealink video conferencing systems |
Plugging straight into a PC as a USB microphone |
| Rooms using a Yealink UVC84 or UVC40 camera |
Non-Yealink conferencing systems |
| Long boardroom tables (cascade up to 4) |
Buyers needing a standalone speakerphone |
| Tidy installs with one cable per microphone |
Rooms with no compatible Yealink host device |
Condition Grades
| Grade |
Description |
| A - Excellent |
Excellent to very good cosmetic condition. May show very light marks from previous use; fully function-checked. |
| B - Good |
Good cosmetic condition with visible signs of previous use such as light scratches or scuffs on the housing. Function is not affected. |
Grades describe cosmetic condition only. Both grades carry the same 12-month Reboot IT warranty.
Frequently Asked Questions
Can I plug the VCM34 into my computer?
No. It is not a USB device. It connects to the Yealink microphone port of a Yealink video conferencing system or Yealink UVC camera, which powers it.
Does it need a power supply?
No separate power supply is needed when connected to a compatible Yealink host. It uses Power over Ethernet (IEEE 802.3af) through the network cable.
How far does it pick up voices?
Up to 6 metres (20ft) in a full 360 degree pattern around the unit.
Can I use more than one?
Yes. Up to four VCM34 arrays can be cascaded in one system using the second RJ-45 port.
Does it include a speaker?
No. It is a microphone array only; audio playback comes from your Yealink system, camera line-out or room speakers.
Is shipping free?
Yes, this item ships with free standard AU shipping.
What warranty is included?
A 12-month Reboot IT warranty covers faults under normal use.
