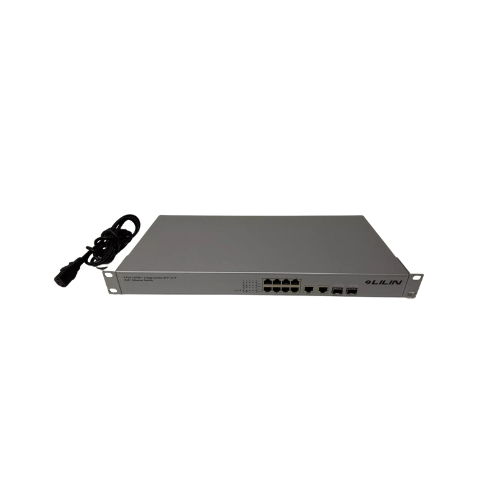

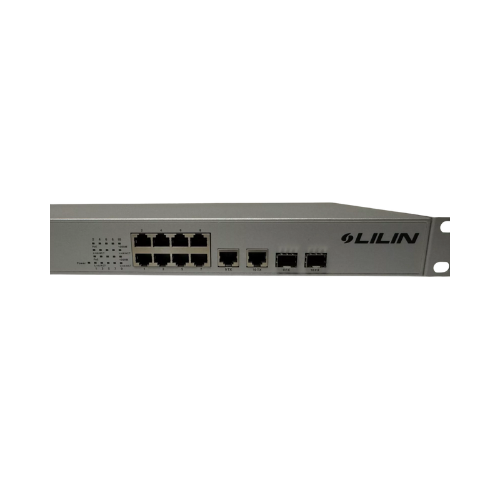

LILIN PMH-POE08260WAT 8 Port PoE+ Fast Ethernet Switch 260W | Wty

LILIN PMH-POE08260WAT 8-Port PoE+ Fast Ethernet Switch - Certified Refurbished

The LILIN PMH-POE08260WAT features 8 x 10/100M Fast Ethernet ports with PoE+ capability delivering up to 30W per port, 2 x Combo Gigabit UTP/SFP uplink ports, 260W total power capacity, and a professional 19" rack-mount form factor (440 × 220 × 44mm), making it the perfect solution for powering and connecting IP cameras, wireless access points, and other PoE-enabled devices in surveillance and network infrastructure applications.

This certified refurbished PoE+ switch delivers enterprise-grade network switching with integrated power distribution, eliminating the need for separate power supplies for connected devices. The non-blocking, store-and-forward architecture ensures reliable data transmission, while auto-negotiation and Auto-MDI/MDI-X functionality provide seamless plug-and-play operation.

Practical Applications

• Surveillance Systems: Ideal for powering and connecting up to 8 IP cameras simultaneously, with sufficient power budget for high-performance PTZ and dome cameras requiring maximum PoE+ output.
• Network Infrastructure: Perfect for small to medium business networks requiring centralised power distribution for wireless access points, VoIP phones, and other PoE-enabled devices.
• Rack-Mount Installations: Professional 19" rack-mount design with included mounting brackets ensures clean installation in server rooms and network cabinets.

Key Features & Benefits

• High Power PoE+ Support: Each port delivers up to 30W of power, fully compliant with IEEE 802.3at standard
• Flexible Connectivity: 8 Fast Ethernet ports plus 2 Gigabit combo ports for uplink connections
• Professional Design: Industrial-grade metal construction with rack-mount capability
• Intelligent Operation: Auto-negotiation, auto-duplex detection, and smart plug-and-play functionality
• Advanced Flow Control: IEEE 802.3x flow control prevents data loss during high traffic periods
• LED Monitoring: Per-port LINK/ACT and PoE status indicators plus unit power LED

Technical Specifications

• Ethernet Ports: 8 x 10/100M Fast Ethernet with RJ-45 connectors
• PoE Ports: 8 x PSE/PoE+ function ports (30W maximum per port)
• Uplink Ports: 2 x Combo Gigabit UTP/SFP ports
• Power Standards: IEEE 802.3at PoE+ compliant
• Total Power Budget: 260W maximum system power
• Switching Architecture: Non-blocking, store-and-forward operation
• Form Factor: 19" rack-mount with included brackets
• Dimensions: 440 × 220 × 44mm (L × W × H)
• Weight: 2.6kg
• Operating Temperature: 0°C to 45°C

Quality Assurance & Testing

All units are verified refurbished by Reboot IT’s thorough testing process using cutting-edge testing software. We tested all features and functions to ensure optimal performance including power output verification, switching capacity testing, and PoE compliance validation.

Reboot IT has been an expert in the refurbished networking equipment industry since 2001, utilising advanced diagnostic tools and rigorous quality control procedures to ensure every device meets professional standards.

This certified refurbished PMH-POE08260WAT is sold by Reboot IT with a 1 year warranty, providing peace of mind and professional support for your network infrastructure investment.

Professional Refurbished Quality

Each unit undergoes comprehensive testing and refurbishment to restore original functionality while offering exceptional value compared to new equipment pricing. Our certified refurbishment process ensures reliable operation suitable for business-critical applications.

Upgrade your network infrastructure today with this professional-grade PoE+ switch — combining proven LILIN engineering with Reboot IT’s quality assurance and comprehensive warranty support.
