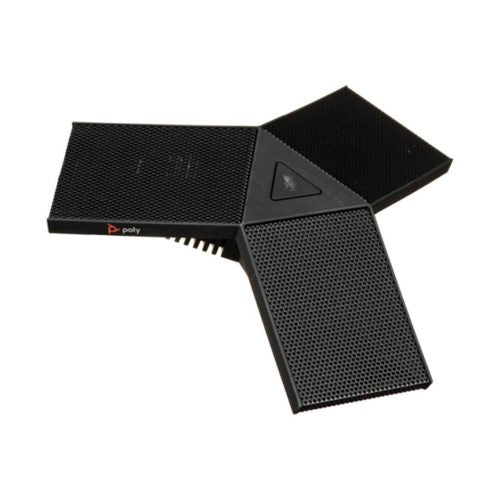

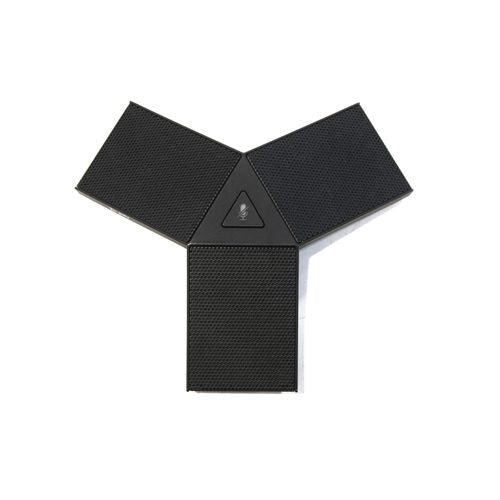

Poly EX-MIC Expansion Microphone Array (2201-69631-001)
The Poly EX-MIC is an expansion microphone array for Poly Studio X50 and X70 video conferencing systems, extending microphone coverage across larger meeting rooms. It connects to the Studio X base unit and requires no separate power supply. Backed by a 12-month Reboot IT warranty.
⚠ Accessory item. This microphone requires a Poly Studio X50 or X70 video bar to function. It is not a standalone microphone and will not work with a computer or general audio equipment.
Key Benefits
-
Extends room coverage: Adds a microphone array away from the video bar so voices at the far end of a longer room reach remote participants at natural levels.
-
Genuine Poly part: Original Poly hardware (2201-69631-001) matched to the Studio X audio processing, rather than a third-party microphone the system cannot integrate.
-
Powered by the Studio X base: Takes power over the connecting cable from the video bar, so no power outlet is needed at the microphone position on the table.
-
Integrates with Poly audio processing: Works within the Studio X noise suppression and acoustic echo cancellation rather than sitting outside it as a separate audio source.
-
Plug-in installation: Connects directly to the Studio X expansion port with no drivers, pairing, or configuration required.
-
Cost-effective room upgrade: Improves audio coverage in a large room without replacing the video conferencing system itself.
Performance in Use
Video bars such as the Studio X50 and X70 combine camera, speaker, and microphone array into a single unit mounted at the front of the room. That design works very well in small and medium spaces, but in a longer room the microphones are inevitably far from the people seated at the back — and those participants are the ones remote attendees struggle to hear.
The EX-MIC addresses this directly by placing an additional array on the table, closer to the seats the video bar cannot cover well. Because it is a genuine Poly accessory, its input is processed within the Studio X audio pipeline — the same noise suppression and echo cancellation apply, so it behaves as an extension of the system rather than a bolted-on second microphone.
For an organisation that has already invested in Studio X hardware, this is the sensible next step when a room proves larger than the video bar alone can handle. Installation takes minutes, requires no configuration, and does not disturb the existing room setup or call platform.
Technical Specifications
| Specification |
Details |
| Model |
Poly EX-MIC Expansion Microphone Array |
| Part Number |
2201-69631-001 |
| Type |
Wired expansion microphone array |
| Compatibility |
Poly Studio X50 and Studio X70 video bars |
| Power |
Powered from the Studio X base unit over the connecting cable |
| Installation |
Plug and play — no configuration required |
| Placement |
Table-top, positioned away from the video bar |
| Standalone Use |
Not supported — requires a Studio X host unit |
| Warranty |
12 months (Reboot IT) |
Is It Right for You?
✓ Best For: • Existing Poly Studio X50 or X70 installations • Longer meeting rooms where rear seats are hard to hear • Improving audio without replacing the video conferencing system • Rooms where the video bar sits well forward of the table • IT teams needing a genuine Poly replacement microphone |
✗ Not For: • Standalone microphone use with a PC or laptop • Polycom RealPresence Trio phones — those use a different microphone • Non-Poly video conferencing systems • USB or Bluetooth microphone requirements • Recording, streaming, or music applications |
Condition Grades
| Grade |
Cosmetic Condition |
Functional Testing |
| A — Excellent |
Minimal marks, near-new appearance |
Audio pickup and connection to a Studio X host unit verified |
| B — Good |
Light wear from normal use, fully functional |
Audio pickup and connection to a Studio X host unit verified |
Frequently Asked Questions
Will this work with a Polycom RealPresence Trio?
No. The EX-MIC (2201-69631-001) is designed for Poly Studio X50 and X70 video bars. The RealPresence Trio uses a different expansion microphone.
Can I use it as a USB microphone on a computer?
No. This is a proprietary expansion accessory that requires a Poly Studio X host unit. It will not function as a standalone or USB microphone.
Does it need a separate power supply?
No. Power is drawn from the Studio X base unit over the connecting cable, so no power outlet is required at the table position.
Is the connecting cable included?
Cable inclusion varies between refurbished units. Contact us before ordering if you need the cable confirmed for your specific order.
Does it improve echo cancellation?
The microphone is processed within the Studio X audio pipeline, so the system noise suppression and acoustic echo cancellation apply to its input as they do to the built-in array.
What are the shipping options?
Free standard shipping across Australia.
Warranty & Support
Every Poly EX-MIC expansion microphone sold by Reboot IT includes a 12-month warranty covering hardware defects and functional failure from the date of purchase.
Reboot IT has been Australia's trusted refurbished IT specialist since 2001. Every unit is tested before dispatch — audio pickup and connection to a Studio X host unit are confirmed working. Free standard shipping across Australia. Melbourne-based support at reboot-it.com.au.
