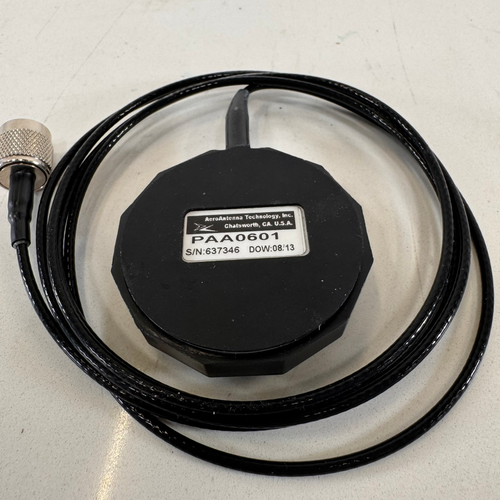

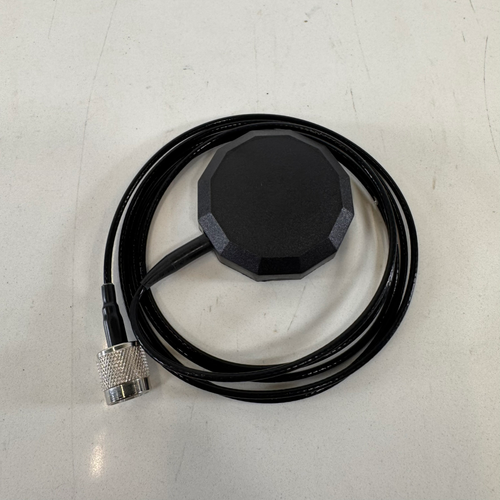

AeroAntenna PAA0601 — Precision GPS/GNSS Auxiliary Antenna
The AeroAntenna PAA0601 is a precision active GPS/GNSS antenna designed for aviation, survey, and precision positioning applications. Features a built-in low-noise amplifier (LNA), multi-constellation reception (GPS L1, GLONASS), and a ruggedised weatherproof housing. Backed by a full 12-month Reboot IT warranty with free standard AU shipping.
Key Benefits
-
Active LNA design: Integrated low-noise amplifier boosts received GPS/GNSS signal before it reaches the receiver — compensating for cable loss and enabling reliable operation in environments with moderate signal interference
-
Multi-constellation GNSS: Receives GPS L1 (1575.42 MHz) and GLONASS signals simultaneously — increasing satellite availability for faster lock acquisition and improved position accuracy in challenging sky-view environments
-
Aviation and survey grade construction: AeroAntenna builds antennas to aerospace standards — stable phase centre, low multipath susceptibility, and temperature stability for use in precision navigation and geodetic survey receivers
-
Weatherproof housing: Ruggedised enclosure suitable for external mounting on aircraft, vehicles, rooftops, and survey masts — operates reliably across wide temperature ranges
-
Compact and lightweight: Small form factor at 0.3 kg allows flexible installation on aircraft instrument panels, vehicle rooftops, survey tripods, and permanent infrastructure mounts
-
Compatible with precision receivers: Designed for use with survey-grade GNSS receivers, aviation GPS systems, timing receivers, and other precision positioning equipment requiring an active auxiliary antenna
Performance in Use
In aviation applications, the PAA0601 connects to a cockpit GPS navigator or avionics system as an auxiliary or remote antenna — positioned on the aircraft exterior for unobstructed sky view while the receiver unit sits in a protected enclosure. The integrated LNA ensures the amplified signal travels cleanly through the coaxial cable run to the receiver without significant degradation.
For survey and precision positioning use, the PAA0601 provides a stable phase centre and low multipath response — two critical antenna characteristics for centimetre-level GNSS positioning. Its multi-constellation capability increases the number of tracked satellites, improving dilution of precision (DOP) values and shortening the initialisation time for RTK and static survey processing.
Timing and synchronisation installations benefit from the compact form factor and reliable LNA design. The PAA0601 can be roof-mounted on telecommunications equipment buildings, data centres, and timing servers requiring a robust GNSS signal input for precision time reference (PPS) applications.
Technical Specifications
| Antenna Type |
Active GPS/GNSS patch antenna with integrated LNA |
| Frequencies |
GPS L1 (1575.42 MHz), GLONASS (1598–1606 MHz) |
| Amplifier |
Integrated LNA (low-noise amplifier) |
| Connector |
TNC (threaded coaxial) |
| Housing |
Weatherproof, ruggedised for external mounting |
| Weight |
0.3 kg |
| Application |
Aviation avionics, precision survey, GNSS timing systems |
| Manufacturer |
AeroAntenna Technology |
| Warranty |
12 months (Reboot IT) |
Is It Right for You?
| Best For ✓ |
Not For ✗ |
| Aviation GPS/GNSS avionics antenna replacement |
Consumer-grade smartphone or car GPS |
| Precision survey and RTK GNSS receiver antennas |
Wi-Fi, cellular, or radio frequency applications |
| GNSS timing and synchronisation systems |
Passive (non-amplified) antenna requirements |
| Vehicle rooftop or infrastructure GNSS mounting |
SMA connector receivers without a TNC adapter |
Condition Grades
| Grade |
Description |
| A — Excellent |
Minimal signs of use. Light scuffs or minor marks on housing only. Connector inspected; LNA function and RF performance fully tested. |
| B — Good |
Visible cosmetic wear on housing. Fully functional. RF performance and connector integrity tested and verified. |
Frequently Asked Questions
What receivers is this antenna compatible with?
The PAA0601 is compatible with any GPS/GNSS receiver that accepts an external active antenna via a TNC connector and supplies DC bias voltage on the coaxial cable (typically 3.3–5 V). This includes most survey-grade GNSS receivers, aviation GPS units, and timing receivers. Verify your receiver’s antenna connector type and bias voltage before ordering.
Is this a passive or active antenna?
Active — the PAA0601 contains an integrated LNA that amplifies received GPS/GNSS signals before sending them down the coaxial cable to the receiver. The LNA is powered by DC bias voltage supplied by the connected receiver via the coaxial cable.
Can it replace a failed antenna on an existing GPS system?
Yes — provided your GPS/GNSS system accepts a TNC-connected active antenna. The PAA0601’s multi-constellation coverage and LNA gain make it a capable replacement for most single-constellation L1 GPS antennas in aviation and survey installations.
Is it suitable for outdoor permanent mounting?
Yes — the weatherproof housing is designed for external mounting on aircraft, vehicle rooftops, survey masts, and telecommunications infrastructure. Ensure the mounting point provides a clear sky view for optimal satellite acquisition.
What warranty is included?
A 12-month Reboot IT warranty covers all hardware components from the date of purchase.
How does shipping work?
This item qualifies for free standard AU shipping due to its compact size and weight.
