RTI XP-3Control Processor ZigBee IR RS-232 Relay PoE Home Automation

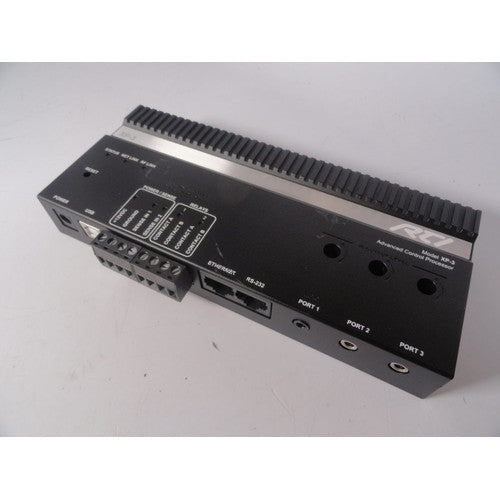

RTI XP-3 Control Processor

A compact control processor from RTI for professional AV and home automation systems, with built-in ZigBee two-way RF, IR, RS-232 and relay I/O. Every unit is certified refurbished, fully tested in Melbourne and backed by a 12-month warranty from Reboot IT.

Key Benefits

• Built-in ZigBee two-way RF. Native IEEE 802.15.4 ZigBee support gives reliable two-way communication with compatible RTI remote controls.
• Comprehensive I/O. 2x variable IR outputs, 1x RS-232 port, 2x relays (5A @ 30VDC), 2x sense inputs and a multi-purpose I/O cover a wide range of AV and automation control tasks.
• PoE or 12VDC powered. Run it over PoE 802.3af Class 3 through your network switch, or power it with a standard +12VDC adapter.
• Compact wall-mount design. A small 175 x 76 x 25mm enclosure suits wall-mount or free-standing installation, and it is not intended for rack mounting.
• Networked control. A 10/100 Ethernet port with PoE support and a USB programming port keep the processor connected and ready to configure.
• Backed by a 12-month warranty. Every unit is tested and graded in Melbourne before it ships, with a 12-month warranty from Reboot IT.

Performance in Use

The RTI XP-3 is a compact control processor built for professional AV integrators and home automation installers. At its core is built-in ZigBee (IEEE 802.15.4) two-way RF, which pairs with compatible RTI remote controls to give responsive, reliable command and feedback across a room or whole property — without needing a separate RF base station.

Beyond ZigBee, the XP-3 offers a genuinely flexible I/O set for driving connected equipment: two variable IR outputs for controlling TVs, projectors and AV receivers, an RS-232 port for serial-controlled devices, two 5A relays for switching lighting, blinds or other loads, two sense inputs for monitoring contact closures or sensors, and a multi-purpose I/O for additional flexibility. A 10/100 Ethernet port with PoE Class 3 support ties the processor into your network for control and configuration, alongside a USB port used for programming.

Power comes from either Power over Ethernet (802.3af Class 3) through a compatible switch, or a standard +12VDC 1A adapter, giving installers flexibility depending on the site. The compact 175 x 76 x 25mm enclosure is designed for wall-mount or free-standing installation in a cupboard, rack room or equipment cabinet — it is not intended for rack mounting. Note that the XP-3 needs to be programmed using RTI Integration Designer by an RTI integrator before it will drive your equipment; it does not arrive pre-configured for a specific system.

The RTI brand is now part of AVPro Global, so this is a good fit for anyone who already works with an RTI integrator or dealer and simply needs another XP-3 processor to extend or replace equipment in an existing project. Because ZigBee, IR, RS-232 and relay control all run from the one small enclosure, it is a practical way to consolidate several point control functions — remote handset communication, AV device switching, lighting relays and sensor monitoring — into a single, PoE-friendly piece of hardware rather than several separate boxes.

As a certified refurbished unit, the XP-3 is a cost-effective way to add another control point to a multi-room or multi-site RTI deployment, or to keep a legacy install running after an original processor has failed. Every unit is tested for power-up and connectivity before it is graded and listed, so integrators can bring it into a project with confidence and have their RTI Integration Designer configuration programmed onto it in the usual way.

Tech Specs

Is It Right for You?

Condition Grades

Frequently Asked Questions

Does the XP-3 come pre-programmed?

No. The XP-3 needs to be configured using RTI Integration Designer, which requires an RTI integrator to program the system for your specific equipment, remotes and connected devices. It is supplied as a certified refurbished processor ready for an integrator to set up, not as a plug-and-play consumer device.

How is it powered?

It can be powered over Ethernet using PoE 802.3af Class 3 through a compatible network switch, or with a standard +12VDC 1A adapter if PoE is not available at the install location.

Can it be rack mounted?

No. The XP-3 is designed for wall-mount or free-standing installation only; it is not a rack-mount device. Its compact 175 x 76 x 25mm enclosure is intended to sit discreetly in a cupboard, comms cabinet or equipment room.

Does it support ZigBee remotes?

Yes, it has built-in ZigBee (IEEE 802.15.4) two-way RF, giving reliable two-way communication with compatible RTI remote controls without needing a separate RF base station.

Is RTI still supported by the manufacturer?

The RTI brand is now part of AVPro Global. We don't promise ongoing manufacturer support on this refurbished unit, so we recommend working with a current RTI integrator for programming, firmware and system support.

What is the warranty?

Every unit is backed by a 12-month warranty from Reboot IT covering hardware faults under normal use.

Is shipping free?

Shipping costs apply based on size and destination — rates are calculated at checkout.

Warranty & Why Buy From Reboot IT

Every certified refurbished RTI XP-3 comes with a 12-month warranty from Reboot IT covering hardware faults under normal use. Reboot IT has been refurbishing and supplying business-grade IT and AV equipment from Melbourne since 2001, and every unit is professionally tested, cleaned and graded by our in-house technicians before it leaves the warehouse. Each processor is checked for power-up, network connectivity and I/O function before it is packed and dispatched. If anything goes wrong within the warranty period, our Melbourne team is here to help.

Buying refurbished AV control hardware is a smart, cost-effective way to add ZigBee and multi-format control to a system while keeping good equipment in use and out of landfill. Enjoy local Australian support and a team that knows this equipment inside out. Visit reboot-it.com.au for more certified refurbished networking and AV gear.
